DTS二次开发文档

Global

Members

<constant> ActionMode :number

自定义对象视角跟随模式枚举

Type:
  • number
Properties:
Name Type Default Description
None number 0

视角不跟随
Follow number 1

视角跟随
FollowBehindAndAbove number 2

后上方跟随
FollowBehind number 3

后方跟随
FollowAbove number 4

上方跟随
FollowBellow number 5

下方跟随
FollowLeft number 6

左方跟随
FollowRight number 7

右方跟随
FollowWorldRotation number 8

跟随世界的绝对朝向

<constant> AnimationMask :number

播放导览动画时的配置掩码

Type:
  • number
Properties:
Name Type Default Description
Camera number 1

相机位置
Environment number 2

环境天气
ProjectTree number 4

工程树属性
Settings number 8

导览设置

<constant> APIErrorCode :number

WebSocket接口调用的错误代码

Type:
  • number
Properties:
Name Type Default Description
OK number 0

正常
InvalidParameters number 1

参数错误
InternalError number 2

内部错误（环境尚未准备好、空指针等）
ResourceNotFound number 3

数据不存在
AcpProjWKTNotSet number 4

工程未设置坐标系
CoordinateConversionFailed number 5

坐标转换失败
IDExists number 6

指定ID的对象已经存在了
InvalidRequestType number 7

无效的请求类型
InvalidRequestString number 8

无效的请求（包含了InvalidRequestType）
NoCommand number 9

CommandFactory没有创建对应的Command
DataTypeNotSupport number 10

不支持这种类型的数据（比如压平操作只能是OSGB和Terrain）
InvalidOperation number 11

无效的操作
ProjectNotOpened number 12

工程尚未打开，此时不能进行API调用！
CodeMax number 65535

<constant> AssetType :number

ACP工程包含的资产类型

Type:
  • number
Properties:
Name Type Default Description
EPT_Scene number 1

场景3DT
EPT_ModelActor number 2

场景模型Actor
EPT_Measurement number 3

测量
EPT_Cut number 4

剖切体
EPT_DynamicWater number 5

动态水
EPT_Vehicle number 6

车辆
EPT_Tag number 7

标签
EPT_Light number 8

灯光
EPT_Decal number 9

贴花
EPT_LightBeam number 10

光流
EPT_RadiationPoint number 11

辐射圈
EPT_Surface number 12

面
EPT_ShpPoint number 13

点Shape
EPT_ShpPolyline number 14

折线Shape
EPT_ShpPolygon number 15

多边形Shape
EPT_Polyline number 16

折线
EPT_VideoProjector number 17

视频投影
EPT_Panoramic number 18

全景图
EPT_FlattenModifier number 19

压平
EPT_Cesium number 20

Cesium3DTileset
EPT_CutPolygonModifier number 21

挖洞
EPT_EffectPoint number 22

动态标记
EPT_S3MLayer number 23

S3M Layer
EPT_ParticleActor number 24

粒子
EPT_RoleActor number 25

角色
EPT_SoundActor number 26

声音
EPT_CustomActor number 27

自定义模型：CustomObject
EPT_CameraTour number 28

导览
EPT_Animation number 29

动画

<constant> BPFuncParamType :number

蓝图函数参数类型

Type:
  • number
Properties:
Name Type Default Description
Bool number 0

Bool
UInt8 number 1

UInt8
Int32 number 2

Int32
Float number 3

Float
Double number 4

Double
String number 5

String
Color number 6

Color
Vector2D number 7

Vector2D
Vector number 8

Vector
Rotator number 9

Rotator
IntArray number 10

IntArray
StringArray number 11

StringArray
VectorArray number 12

VectorArray
Coordinate number 13

Coordinate 取值示例
CoordinateArray number 14

CoordinateArray 取值示例
FloatArray number 15

FloatArray
DisplayStyle number 16

PointStyle IconStyle AnimationStyle
CustomIconPath number 17

IconPath filepath

<constant> CloudStatus :number

Cloud的运行状态
可以从视频窗口左上角闪烁的小圆点的颜色判断当前的运行状态

Type:
  • number
Properties:
Name Type Default Description
WS_Disconnected number 0

WebSocket连接断开（ 颜色：红 ）
WS_Connecting number 1

WebSocket正在尝试连接（颜色：灰 ）
WS_Connected number 2

WebSocket已连接，正在建立WebRTC连接（颜色：黄 ）
RTC_Opened number 3

WebRTC通道已打开（颜色：蓝 ）
Video_LoadedMetaData number 4

视频流元数据已加载（内部使用）
OnReady number 5

Acp工程已打开（颜色：绿 ）

<constant> Color :string

预定义的颜色值 接口中颜色参数可以使用这些预定义的颜色值

Type:
  • string
Properties:
Name Type Default Description
LightPink string RGB(255,182,193)

浅粉红
Pink string RGB(255,192,203)

粉红
Crimson string RGB(220,20,60)

猩红
LavenderBlush string RGB(255,240,245)

脸红的淡紫色
PaleVioletRed string RGB(219,112,147)

苍白的紫罗兰红色
HotPink string RGB(255,105,180)

热情的粉红
DeepPink string RGB(255,20,147)

深粉色
MediumVioletRed string RGB(199,21,133)

适中的紫罗兰红色
Orchid string RGB(218,112,214)

兰花的紫色
Thistle string RGB(216,191,216)

蓟
plum string RGB(221,160,221)

李子
Violet string RGB(238,130,238)

紫罗兰
Magenta string RGB(255,0,255)

洋红
Fuchsia string RGB(255,0,255)

灯笼海棠(紫红色)
DarkMagenta string RGB(139,0,139)

深洋红色
Purple string RGB(128,0,128)

紫色
MediumOrchid string RGB(186,85,211)

适中的兰花紫
DarkVoilet string RGB(148,0,211)

深紫罗兰色
DarkOrchid string RGB(153,50,204)

深兰花紫
Indigo string RGB(75,0,130)

靛青
BlueViolet string RGB(138,43,226)

深紫罗兰的蓝色
MediumPurple string RGB(147,112,219)

适中的紫色
MediumSlateBlue string RGB(123,104,238)

适中的板岩暗蓝灰色
SlateBlue string RGB(106,90,205)

板岩暗蓝灰色
DarkSlateBlue string RGB(72,61,139)

深岩暗蓝灰色
Lavender string RGB(230,230,250)

熏衣草花的淡紫色
GhostWhite string RGB(248,248,255)

幽灵的白色
Blue string RGB(0,0,255)

纯蓝
MediumBlue string RGB(0,0,205)

适中的蓝色
MidnightBlue string RGB(25,25,112)

午夜的蓝色
DarkBlue string RGB(0,0,139)

深蓝色
Navy string RGB(0,0,128)

海军蓝
RoyalBlue string RGB(65,105,225)

皇家蓝
CornflowerBlue string RGB(100,149,237)

矢车菊的蓝色
LightSteelBlue string RGB(176,196,222)

淡钢蓝
LightSlateGray string RGB(119,136,153)

浅石板灰
SlateGray string RGB(112,128,144)

石板灰
DoderBlue string RGB(30,144,255)

道奇蓝
AliceBlue string RGB(240,248,255)

爱丽丝蓝
SteelBlue string RGB(70,130,180)

钢蓝
LightSkyBlue string RGB(135,206,250)

淡蓝色
SkyBlue string RGB(135,206,235)

天蓝色
DeepSkyBlue string RGB(0,191,255)

深天蓝
LightBLue string RGB(173,216,230)

淡蓝
PowDerBlue string RGB(176,224,230)

火药蓝
CadetBlue string RGB(95,158,160)

军校蓝
Azure string RGB(240,255,255)

蔚蓝色
LightCyan string RGB(225,255,255)

淡青色
PaleTurquoise string RGB(175,238,238)

苍白的绿宝石
Cyan string RGB(0,255,255)

青色
Aqua string RGB(212,242,231)

水绿色
DarkTurquoise string RGB(0,206,209)

深绿宝石
DarkSlateGray string RGB(47,79,79)

深石板灰
DarkCyan string RGB(0,139,139)

深青色
Teal string RGB(0,128,128)

水鸭色
MediumTurquoise string RGB(72,209,204)

适中的绿宝石
LightSeaGreen string RGB(32,178,170)

浅海洋绿
Turquoise string RGB(64,224,208)

绿宝石
Auqamarin string RGB(127,255,170)

绿玉\碧绿色
MediumAquamarine string RGB(0,250,154)

适中的碧绿色
MediumSpringGreen string RGB(0,255,127)

适中的春天的绿色
MintCream string RGB(245,255,250)

薄荷奶油
SpringGreen string RGB(60,179,113)

春天的绿色
SeaGreen string RGB(46,139,87)

海洋绿
Honeydew string RGB(240,255,240)

蜂蜜
LightGreen string RGB(144,238,144)

淡绿色
PaleGreen string RGB(152,251,152)

苍白的绿色
DarkSeaGreen string RGB(143,188,143)

深海洋绿
LimeGreen string RGB(50,205,50)

酸橙绿
Lime string RGB(0,255,0)

酸橙色
ForestGreen string RGB(34,139,34)

森林绿
Green string RGB(0,128,0)

纯绿
DarkGreen string RGB(0,100,0)

深绿色
Chartreuse string RGB(127,255,0)

查特酒绿
LawnGreen string RGB(124,252,0)

草坪绿
GreenYellow string RGB(173,255,47)

绿黄色
OliveDrab string RGB(85,107,47)

橄榄土褐色
Beige string RGB(245,245,220)

米色(浅褐色)
LightGoldenrodYellow string RGB(250,250,210)

浅秋麒麟黄
Ivory string RGB(255,255,240)

象牙
LightYellow string RGB(255,255,224)

浅黄色
Yellow string RGB(255,255,0)

纯黄
Olive string RGB(128,128,0)

橄榄
DarkKhaki string RGB(189,183,107)

深卡其布
LemonChiffon string RGB(255,250,205)

柠檬薄纱
PaleGodenrod string RGB(238,232,170)

灰秋麒麟
Khaki string RGB(240,230,140)

卡其布
Gold string RGB(255,215,0)

金
Cornislk string RGB(255,248,220)

玉米色
GoldEnrod string RGB(218,165,32)

秋麒麟
FloralWhite string RGB(255,250,240)

花的白色
OldLace string RGB(253,245,230)

老饰带
Wheat string RGB(245,222,179)

小麦色
Moccasin string RGB(255,228,181)

鹿皮鞋
Orange string RGB(255,165,0)

橙色
PapayaWhip string RGB(255,239,213)

番木瓜
BlanchedAlmond string RGB(255,235,205)

漂白的杏仁
NavajoWhite string RGB(255,222,173)

纳瓦霍白
AntiqueWhite string RGB(250,235,215)

古代的白色
Tan string RGB(210,180,140)

晒黑
BrulyWood string RGB(222,184,135)

结实的树
Bisque string RGB(255,228,196)

(浓汤)乳脂,番茄等
DarkOrange string RGB(255,140,0)

深橙色
Linen string RGB(250,240,230)

亚麻布
Peru string RGB(205,133,63)

秘鲁
PeachPuff string RGB(255,218,185)

桃色
SandyBrown string RGB(244,164,96)

沙棕色
Chocolate string RGB(210,105,30)

巧克力
SaddleBrown string RGB(139,69,19)

马鞍棕色
SeaShell string RGB(255,245,238)

海贝壳
Sienna string RGB(160,82,45)

黄土赭色
LightSalmon string RGB(255,160,122)

浅鲜肉(鲑鱼)色
Coral string RGB(255,127,80)

珊瑚
OrangeRed string RGB(255,69,0)

橙红色
DarkSalmon string RGB(233,150,122)

深鲜肉(鲑鱼)色
Tomato string RGB(255,99,71)

番茄
MistyRose string RGB(255,228,225)

薄雾玫瑰
Salmon string RGB(250,128,114)

鲜肉(鲑鱼)色
Snow string RGB(255,250,250)

雪
LightCoral string RGB(240,128,128)

淡珊瑚色
RosyBrown string RGB(188,143,143)

玫瑰棕色
IndianRed string RGB(205,92,92)

印度红
Red string RGB(255,0,0)

纯红
Brown string RGB(165,42,42)

棕色
FireBrick string RGB(178,34,34)

耐火砖
DarkRed string RGB(139,0,0)

深红色
Maroon string RGB(128,0,0)

栗色
White string RGB(255,255,255)

纯白
WhiteSmoke string RGB(245,245,245)

白烟
Gainsboro string RGB(220,220,220)

亮灰色
LightGrey string RGB(211,211,211)

浅灰色
Silver string RGB(192,192,192)

银白色
DarkGray string RGB(169,169,169)

深灰色
Gray string RGB(128,128,128)

灰色
DimGray string RGB(105,105,105)

暗淡的灰色
Black string RGB(0,0,0)

纯黑

<readonly> CommandType :number

内部使用的接口命令

Type:
  • number
Properties:
Name Type Default Description
None number None
Camera_PlayAnimation number PlayCamAnim
Camera_StopAnimation number StopPlayCamAnim
Misc_EnterReportMode number EnterReportMode
Misc_ExitReportMode number ExitReportMode
Misc_SetDateTime number SetWheatherCondition
Camera_GetCamera number GetCameraInfo
Camera_SetState number SetCameraState
Camera_Set number SetCamera
Camera_LookAtBBox number SetCameraLookAtBBox
Coord_World2Screen number TransformPositionW2S
Coord_Screen2World number TransformPositionS2W
InfoTree_SetVisibility number SetProjectTree
InfoTree_Show number ShowProjectTreeLayers
InfoTree_Hide number HideProjectTreeLayers
InfoTree_EnableXRay number EnableXRay
InfoTree_DisableXRay number DisableXRay
TileLayer_Add number AddTileLayer
HeatMap_Add number AddHeatMap
HeatMap_Update number UpdateHeatMap
HeatMap_AddPoints number AddPointsToHeatMap
HeatMap_RemovePoints number RemovePointsFromHeatMap
HeatMap_Delete number DeleteHeatMap
HeatMap_Show number ShowHeatMap
HeatMap_Hide number HideHeatMap
HeatMap_Focus number FocusHeatMap
HighlightArea_Add number CreateHighlightArea
HighlightArea_Delete number RemoveHighlightArea
HighlightArea_Update number ModifyHighlightArea
Polygon3D_Add number Create3dpolygon
Polygon3D_Delete number Delete3dpolygon
Misc_AddImageButton number AddImageButtons
Misc_DeleteImageButton number DeleteImageButtons
Misc_AddAnimatedImageButton number AddAnimatedImageButtons
Settings_SetMainUIVisibility number SetMainUIVisibility
Settings_SetMousePickMask number SetQueryToolState
Tag_Add number CreateTags
Tag_Delete number ClearTags
Tag_Update number UpdateTags
Tag_Clear number ClearAllTags
Tag_Focus number FocusTags
Beam_Add number CreateBeams
Beam_Update number UpdateBeams
Beam_Delete number ClearBeams
Beam_Clear number ClearAllBeams
Beam_Focus number FocusBeams
Beam_Show number ShowBeams
Beam_Hide number HideBeams
Beam_ShowAll number ShowAllBeams
Beam_HideAll number HideAllBeams
RadiationPoint_Add number CreateRadiationPoints
RadiationPoint_Update number UpdateRadiationPoints
RadiationPoint_Delete number ClearRadiationPoints
RadiationPoint_Clear number ClearAllRadiationPoints
Polygon_Add number CreatePolygons
Polygon_Update number UpdatePolygons
Polygon_Delete number ClearPolygons
Polygon_Clear number ClearAllPolygons
Polygon_Highlight number HighlightPolygons
Polygon_StopHighlight number StopHighLightPolygons
Polygon_Glow number GlowPolygons
Polygon_Focus number FocusPolygons
Tag_FocusAll number FocusAllTags
Tag_Show number ShowTags
Tag_Hide number HideTags
Tag_ShowAll number ShowAllTags
Tag_HideAll number HideAllTags
RadiationPoint_Focus number FocusRadiationPoints
RadiationPoint_FocusAll number FocusAllRadiationPoints
RadiationPoint_Show number ShowRadiationPoints
RadiationPoint_Hide number HideRadiationPoints
RadiationPoint_ShowAll number ShowAllRadiationPoints
RadiationPoint_HideAll number HideAllRadiationPoints
Polygon_Show number ShowPolygons
Polygon_Hide number HidePolygons
Polygon3D_Update number Update3DPolygons
Polygon3D_Clear number ClearAll3DPolygon
Polygon3D_Focus number Focus3DPolygons
Polygon3D_Show number Show3DPolygons
Polygon3D_Hide number Hide3DPolygons
Polygon3D_Highlight number Highlight3DPolygons
Polygon3D_Glow number Glow3DPolygons
Polygon3D_StopGlow number StopGlow3DPolygons
HighlightArea_Clear number ClearAllHighlightAreas
HighlightArea_Focus number FocusHighlightAreas
HighlightArea_Show number ShowHighlightAreas
HighlightArea_Hide number HideHighlightAreas
Misc_GetVersion number GetVersionNumber
TileLayer_Update number UpdateTileLayer
TileLayer_Delete number DeleteTileLayer
TileLayer_Focus number FocusTileLayer
TileLayer_EnableXRay number EnableTileLayerXRay
TileLayer_DisableXRay number DisableTileLayerXRay
TileLayer_Show number ShowTileLayer
TileLayer_Hide number HideTileLayer
Tag_Get number GetTagInfo
RadiationPoint_Get number GetRadiationPointsInfo
Polygon_Get number GetPolygonsInfo
Polygon3D_Get number Get3DPolygonsInfo
HighlightArea_Get number GetHighlightAreaInfo
TileLayer_Get number GetTileLayerInfo
Beam_Get number GetBeamsInfo
HeatMap_Get number GetHeatMapInfo

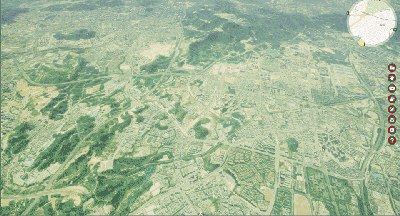

Settings_GetMapMode number GetMapMode

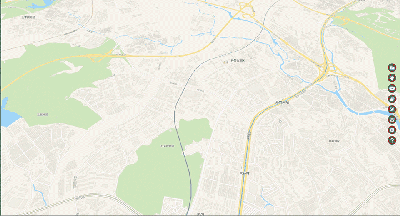

Settings_SetMapMode number SetMapMode
Settings_SetMapURL number SetMapUrl
Settings_SetWMTSLayerVisible number SetServerVisible
TileLayer_Actor_Show number ShowTileLayerActor
TileLayer_Actor_Hide number HideTileLayerActor
TileLayer_Actor_Focus number FocusTileLayerActor
TileLayer_Actor_Highlight number HighLightTileLayerActor
TileLayer_Actor_StopHightlight number StopHightLightTileLayerActor
CustomObject_Add number AddCustomObj
CustomObject_Update number UpdateCustomObj
CustomObject_Delete number DeleteCustomObj
CustomObject_Get number GetCustomObj
CustomObject_Focus number FocusCustomObj
CustomObject_Show number ShowCustomObj
CustomObject_Hide number HideCustomObj
CustomObject_SetTintColor number SetCustomObjectTintColor
HeatMap_Clear number DeleteAllHeatMap
CustomTag_Clear number ClearAllTags
CustomTag_Delete number ClearTags
CustomTag_Focus number FocusTags
CustomTag_FocusAll number FocusAllTags
CustomTag_Show number ShowTags
CustomTag_Hide number HideTags
CustomTag_ShowAll number ShowAllTags
CustomTag_HideAll number HideAllTags
CustomTag_Add number CreateCustomTags
CustomTag_Update number UpdateCustomTags
CustomTag_Get number GetCustomTagInfo
Polyline_Add number CreatePolylines
Polyline_Update number UpdatePolylines
Polyline_Delete number ClearPolyline
Polyline_Clear number ClearAllPolylines
Polyline_Focus number FocusPolylines
Polyline_Get number GetPolylineInfo
Polyline_Show number ShowPolyline
Polyline_Hide number HidePolyline
Polyline_ShowAll number ShowAllPolylines
Polyline_HideAll number HideAllPolylines
VideoProjection_Add number CreateVideoProjecter
VideoProjection_Update number UpdateVideoProjecter
VideoProjection_Delete number DeleteVideoProjecter
VideoProjection_Show number ShowVideoProjecter
VideoProjection_Hide number HideVideoProjecter
VideoProjection_Get number GetVideoProjecter
VideoProjection_Focus number FocusVideoProjecter
Misc_PlayVideo number AddMediaWindow
Misc_StopPlayVideo number DeleteMediaWindow
Weather_SetParams number SetWeatherParameters
Weather_GetParams number GetWeatherParameters
Weather_SetDate number SetDateParameters
Weather_GetDate number GetDateParameters
ODLine_Add number CreateODLines
ODLine_Update number UpdateODLines
ODLine_Delete number ClearODLine
ODLine_Clear number ClearAllODLines
ODLine_Focus number FocusODLines
ODLine_Get number GetODLineInfo
ODLine_Show number ShowODLine
ODLine_Hide number HideODLine
ODLine_ShowAll number ShowAllODLines
ODLine_HideAll number HideAllODLines
Misc_SetWindowResolution number SetWindowResolution
Misc_CallBPFunction number CallBPActorFunction
Settings_SetHighlightColor number SetTileLayerActorColor
InfoTree_ShowByGroupId number ShowByGroupID
InfoTree_HideByGroupId number HideByGroupID
InfoTree_HighlightByGroupId number HighlightByGroupID
InfoTree_DeleteByGroupId number ClearByGroupID
EditHelper_Start number EnterCustomBuilder
EditHelper_Quit number ExitCustomBuilder
EditHelper_Finish number FinishCustomBuilder
EditHelper_SetParam number SetCustomBuilderStyle
Settings_SetFovX number SetFovH
TileLayer_Actor_ShowAll number ShowAllTileLayerActors
TileLayer_Actor_HideAll number HideAllTileLayerActors
CameraTour_Add number CreateSimpleCamAnim
CameraTour_Update number UpdateSimpleCamAnim
CameraTour_Play number PlaySimpleCamAnim
CameraTour_Stop number StopPlaySimpleCamAnim
CameraTour_Delete number DeleteSimpleCamAnim
Tag_PopupWindow_Show number ShowTagsPopUpWindow
Tag_PopupWindow_Hide number HideTagsPopUpWindow
Tag_PopupWindow_ShowAll number ShowAllTagsPopUpWindow
Tag_PopupWindow_HideAll number HideAllTagsPopUpWindow
Settings_SetOceanColor number SetOceanColor
Misc_ShowAllFoliages number ShowAllFoliages
Misc_HideAllFoliages number HideAllFoliages
Tools_StartPolygonClip number StartAreaClip
Tools_StopClip number StopAreaClip
TileLayer_SetAllowClip number SetTileLayerClip
Panorama_Add number CreatePanoramicpoint
Panorama_Update number UpdatePanoramicpoint
Panorama_Delete number ClearPanoramicpoint
Panorama_Clear number ClearAllPanoramicpoint
Panorama_Focus number FocusPanoramicpoint
Panorama_Get number GetPanoramicpoint
Decal_Add number CreateDecal
Decal_Update number UpdateDecal
Decal_Delete number ClearDecal
Decal_Clear number ClearAllDecal
Decal_Focus number FocusDecal
Decal_FocusAll number FocusAllDecal
Decal_Get number GetDecal
Misc_PlayMovie number PlayMovie
Misc_StopMovie number StopMovie
Tools_SetMeasurement number SetMeasure
Tools_StartMeasurement number EnterMeasure
Tools_StopMeasurement number ExitMeasure
Viewshed_Add number CreateViewShedPlane
Viewshed_Update number UpdateViewShedPlane
Viewshed_Focus number FocusViewShedPlane
Viewshed_Delete number DeleteViewShedPlane
Viewshed_Clear number ClearViewShedPlane
Viewshed_Get number GetViewShedPlane
TileLayer_SetStyle number SetTileLayerStyle
Tools_LineIntersect number LineIntersectPoint
Coord_PCS2GCS number ProjectionToGeographic
Coord_GCS2PCS number GeographicToProjection
DynamicWater_Add number CreateDynamicWater
DynamicWater_Update number UpdateDynamicWater
DynamicWater_Focus number FocusDynamicWater
DynamicWater_Delete number DeleteDynamicWater
DynamicWater_Clear number ClearDynamicWater
DynamicWater_Get number GetDynamicWater
DynamicWater_Show number ShowDynamicWater
DynamicWater_Hide number HideDynamicWater
Quit number QuitAirCity
TileLayer_Actor_Unhighlight number UnHighLightTileLayerActor
InfoTree_Get number GetProjectTreeData
Reset number Reset
SaveProject number SaveProjectDatas
CustomObject_Clear number ClearCustomObj
CustomObject_Highlight number HighlightCustomObj
CustomObject_Unhighlight number UnHighlightCustomObj
CustomObject_StopHighlight number StopHighlightCustomObj
CustomObject_CallFunction number CallCustomObjectFunction
CustomObject_AddByTileLayer number AddCustomObjectByTileLayer
Tools_StartPlaneClip number CreatePlaneClip
Tools_StopPlaneClip number DeletePlaneClip
Tools_StartVolumeClip number CreateVolumeClip
Tools_UpdateVolumeClip number UpdateVolumeClip
Tools_StopVolumeClip number DeleteVolumeClip
Tools_StartSkylineAnalysis number CreateSkyline
Tools_StopSkylineAnalysis number DeleteSkyline
Tools_ExportSkyline number ExportSkyline
Tools_StartViewshedAnalysis number CreateViewShed
Tools_StopViewshedAnalysis number DeleteViewShed
Camera_Move number CameraMove
TileLayer_SetCollision number SetTileLayerCollision
TileLayer_Modifier_Add number AddTileLayerModifier
TileLayer_Modifier_Update number UpdateTileLayerModifier
TileLayer_Modifier_Delete number DeleteTileLayerModifier
TileLayer_Modifier_Clear number ClearTileLayerModifier
Misc_StartProcess number StartProcess
Settings_SetCampassVisible number CampassVisible
Tools_StartGeometryEdit number EditGeometry
Tools_StopGeometryEdit number ExitGeometryEdit
Settings_SetEnableInteract number SetEnableInteract
Camera_PauseAnimation number PauseCamAnim
Camera_ResumeAnimation number RestartCamAnim
Settings_SetInteractiveMode number SetPlayerRoammode
CameraTour_Pause number PauseSimpleCamAnim
CameraTour_Resume number RestartSimpleCamAnim
Settings_SetTerrainAlpha number SetTileLayerGlobalAlpha
CustomMesh_Add number CreateSimpleMesh
CustomMesh_Delete number DeleteSimpleMesh
CustomMesh_Clear number ClearAllSimpleMesh
CustomMesh_Update number UpdateSimpleMesh
CustomMesh_Get number GetSimpleMesh
CustomMesh_Focus number FocusSimpleMesh
CustomMesh_Show number ShowSimpleMesh
CustomMesh_Hide number HideSimpleMesh
CustomMesh_ShowAll number ShowAllSimpleMesh
CustomMesh_HideAll number HideAllSimpleMesh
Settings_EnableCameraMovingEvent number EnableCameraMovingEvent
Marker_Add number CreatePOIs
Marker_Update number UpdatePOIs
Marker_Get number GetPOIs
Marker_Delete number ClearPOIs
Marker_Clear number ClearAllPOIs
Marker_Focus number FocusPOIs
Marker_FocusAll number FocusAllPOIs
Marker_Show number ShowPOIs
Marker_Hide number HidePOIs
Marker_ShowAll number ShowAllPOIs
Marker_HideAll number HideAllPOIs
Marker_ShowPopupWindow number ShowPOIsPopUpWindow
Marker_HidePopupWindow number HidePOIsPopUpWindow
Marker_ShowAllPopupWindow number ShowAllPOIsPopUpWindow
Marker_HideAllPopupWindow number HideAllPOIsPopUpWindow
TileLayer_SetViewportVisible number SetTileLayerViewPort
TileLayer_GetObjectIDs number GetTileLayerObjectIDs
Polygon3D_AddHighlight number AddHighlight3DPolygon
Polygon3D_StopHighlight number StopHightLight3DPolygon
Tools_StartFloodFill number CreateFloodFill
Tools_StopFloodFill number DeleteFloodFill
FloodFill_Add number CreateFloodFillObject
FloodFill_Delete number DeleteFloodFillObject
FloodFill_Clear number ClearFloodFillObject
FloodFill_Update number UpdateFloodFillObject
FloodFill_Get number GetFloodFillObject
FloodFill_Focus number FocusFloodFillObject
FloodFill_Show number ShowFloodFillObject
FloodFill_Hide number HideFloodFillObject
FloodFill_ShowAll number ShowAllFloodFillObject
FloodFill_HideAll number HideAllFloodFillObject
Cesium3DTile_Add number CreateCesium3DTile
Cesium3DTile_Delete number DeleteCesium3DTile
Cesium3DTile_Clear number ClearCesium3DTile
Cesium3DTile_Update number UpdateCesium3DTile
Cesium3DTile_Get number GetCesium3DTile
Cesium3DTile_Focus number FocusCesium3DTile
Cesium3DTile_Show number ShowCesium3DTile
Cesium3DTile_Hide number HideCesium3DTile
Cesium3DTile_ShowAll number ShowAllCesium3DTile
Cesium3DTile_HideAll number HideAllCesium3DTile
TileLayer_GetActorInfoFromDB number GetTileLayerDetailedInformation
ShapeFileLayer_Add number CreateShapeFile
ShapeFileLayer_Delete number DeleteShapeFile
ShapeFileLayer_Clear number ClearShapeFile
ShapeFileLayer_Update number UpdateShapeFile
ShapeFileLayer_Get number GetShapeFile
ShapeFileLayer_Focus number FocusShapeFile
ShapeFileLayer_Show number ShowShapeFile
ShapeFileLayer_Hide number HideShapeFile
ShapeFileLayer_ShowAll number ShowAllShapeFile
ShapeFileLayer_HideAll number HideAllShapeFile
ShapeFileLayer_OpenShapeFileLayer number OpenShapeFile
Weather_SimulateTime number SetSimulateTime
TileLayer_Actor_GetInfo number GetTileLayerActorInfo
Camera_GetAnimationList number GetAnimationList
TileLayer_CutPolygon_Add number AddTileLayerCutPolygon
TileLayer_CutPolygon_Update number UpdateTileLayerCutPolygon
TileLayer_CutPolygon_Delete number DeleteTileLayerCutPolygon
TileLayer_CutPolygon_Clear number ClearTileLayerCutPolygon
Marker3D_Add number Create3DMarker
Marker3D_Delete number Delete3DMarker
Marker3D_Clear number Clear3DMarker
Marker3D_Update number Update3DMarker
Marker3D_Get number Get3DMarker
Marker3D_Focus number Focus3DMarker
Marker3D_Show number Show3DMarker
Marker3D_Hide number Hide3DMarker
Marker3D_ShowAll number ShowAll3DMarker
Marker3D_HideAll number HideAll3DMarker
Camera_GetAnimationImage number GetAnimationImage
Tools_ReplaceTexture number ReplaceTexture
Tools_RestoreTexture number RestoreTexture
Light_Add number CreateLight
Light_Delete number DeleteLight
Light_Update number UpdateLight
Light_Get number GetLight
Light_Clear number ClearLight
Light_Focus number FocusLight
Light_Show number ShowLight
Light_Hide number HideLight
Light_ShowAll number ShowAllLight
Light_HideAll number HideAllLight
WaterMesh_Add number CreateWaterMesh
WaterMesh_Update number UpdateWaterMesh
WaterMesh_Delete number DeleteWaterMesh
WaterMesh_Clear number ClearWaterMesh
WaterMesh_Get number GetWaterMesh
WaterMesh_Focus number FocusWaterMesh
WaterMesh_Show number ShowWaterMesh
WaterMesh_Hide number HideWaterMesh
WaterMesh_ShowAll number ShowAllWaterMesh
WaterMesh_HideAll number HideAllWaterMesh
CustomObject_StartMove number MoveCustomObj
CustomObject_StopMove number StopMoveCustomObj
CustomObject_OverrideMaterial number OverrideCustomObjMaterials
CustomObject_RestoreMaterial number RestoreOverrideCustomObjMaterials
Settings_SetReport number SetReportSettings
Settings_GetReport number GetReportSettings
Settings_SetControl number SetControllSettings
Settings_GetControl number GetControllSettings
Settings_SetPostProcess number SetPostProcessSettings
Settings_GetPostProcess number GetPostProcessSettings
Settings_SetCamera number SetCameraSettings
Settings_GetCamera number GetCameraSettings
CustomObject_SetViewportVisible number SetCustomObjViewPort
WaterFlowField_Add number AddFlowVectorField
WaterFlowField_Update number UpdateFlowVectorField
WaterFlowField_Delete number DeleteFlowVectorField
WaterFlowField_Clear number ClearFlowVectorField
WaterFlowField_Get number GetFlowVectorField
WaterFlowField_Focus number FocusFlowVectorField
WaterFlowField_Show number ShowFlowVectorField
WaterFlowField_Hide number HideFlowVectorField
TileLayer_SetViewHeightRange number SetTileLayerVisibleHeight
Tools_StartVisiblityAnalysis number StartVisiblityAnalysis
Tools_StopVisiblityAnalysis number StopVisiblityAnalysis
Tools_StartViewDomeAnalysis number StartViewDomeAnalysis
Tools_StopViewDomeAnalysis number StopViewDomeAnalysis
Tools_StartCutFillAnalysis number StartCutFillAnalysis
Tools_StopCutFillAnalysis number StopCutFillAnalysis
Tools_StartSunshineAnalysis number StartSunshineAnalysis
Tools_StopSunshineAnalysis number StopSunshineAnalysis
Tools_StartTerrainSlopeAnalysis number StartTerrainSlopeAnalysis
Tools_StopTerrainSlopeAnalysis number StopTerrainSlopeAnalysis
Tools_StartContourLineAnalysis number StartTerrainHeightAnalysis
Tools_StopContourLineAnalysis number StopTerrainHeightAnalysis
TileLayer_GetAllFlattenData number GetAllTileLayerFlattenData
Marker_SetupPOIAttachment number SetupPOIAttachment
HeatMap3D_Add number AddHeatMap3d
HeatMap3D_Update number UpdateHeatMap3d
HeatMap3D_Focus number FocusHeatMap3d
HeatMap3D_Delete number DeleteHeatMap3d
HeatMap3D_Show number ShowHeatMap3d
HeatMap3D_Hide number HideHeatMap3d
HeatMap3D_Get number GetHeatMap3d
HeatMap3D_Clear number ClearHeatMap3d
ShapeFileLayer_HighlightFeature number HighlightShapeObject
ShapeFileLayer_UnHighlightFeature number UnHighlightShapeObject
ShapeFileLayer_FocusFeature number FocusShapeObject
ShapeFileLayer_GetFeatureInfo number GetShapeObjectFieldsInfo
Misc_EnterMultiViewport number EnterMultiViewport
Misc_ExitMultiViewport number ExitMultiViewport
Misc_SetActivateMultiViewport number ActivateMultiViewport
Misc_GetActivateMultiViewport number GetActivateMultiViewport
Panorama_Enter number EnterPanorama
Panorama_Exit number ExitPanorama
Panorama_Switch number SwitchPanorama
Settings_VTPKService_Get number GetVTPKService
Settings_VTPKService_Set number SetVTPKService
SimulateTest__ number SimulateTest__
Settings_CursorAutoSync number SetUseSoftwareCursor
InfoTree_Focus number FoucsByGroupID
Marker_ShowByGroupId number ShowMarkerByGroupID
Marker_HideByGroupId number HideMarkerByGroupID
Marker_DeleteByGroupId number DeleteMarkerGroupID
ImageryLayer_Init number InitServerOrService
ImageryLayer_Add number AddServerOrService
Camera_LockBBox number EnterMoveRangeCheck
Camera_UnLockBBox number ExitMoveRangeCheck
Settings_SetWMTSLayerOpacity number SetServerAlpha
Camera_EnterEarthCapture number EnterEarthCapture
Camera_ExitEarthCapture number ExitEarthCapture
Tools_AnalysisPopupAttributes number AnalysisPopupAttributes
Tools_AnalysisCloseAttributes number AnalysisCloseAttributes
ImageryLayer_Show number ShowServerOrService
ImageryLayer_Hide number HideServerOrService
ImageryLayer_Delete number DeleteServerOrService
Settings_GetInteractiveMode number GetInteractiveMode
VideoProjection_Clear number ClearVideoProjecter
Misc_UpdateMultiViewport number UpdateMultiViewport
Misc_downloadPakFiles number OnlineDownloadAssets
Settings_SetCampassPosition number SetCompassPosition
Polygon3D_ShowAll number ShowAll3DPolygons
Polygon3D_HideAll number HideAll3DPolygons
GeoJSONLayer_Add number CreateFeatureLayer
GeoJSONLayer_Show number ShowFeatureLayer
GeoJSONLayer_Hide number HideFeatureLayer
GeoJSONLayer_Delete number RemoveFeatureLayer
Vehicle_Add number CreateVehicle
Vehicle_Update number UpdateVehicle
Vehicle_AddWayPoints number SetVehicleWayPoints
Vehicle_ClearWayPoints number ClearVehicleWayPoints
Vehicle_Focus number FocusVehicle
Vehicle_Show number ShowVehicle
Vehicle_Hide number HideVehicle
Vehicle_Get number GetVehicle
Vehicle_Delete number DeleteVehicle
Vehicle_Clear number ClearVehicle
Vehicle_MoveTo number AddVehicleWayPoint
Misc_ConvexHull2D number ConvexHull2D
HeatMap_AddVoxels number AddHeatmap3DVoxels
TileLayer_GetCollision number GetTileLayerCollision
TileLayer_SetPointSize number SetTileLayerPointSize
Misc_QueryActorOrMaterial number GetObjectParameters
CustomObject_StartGlow number GlowCustomObject
CustomObject_StopGlow number StopGlowCustomObject
Coord_Transform number TransformCoordinate
RegisterJsCommunication number RegisterJSTick
UnRegisterJsCommunication number UnRegisterJSTick
Vehicle_CallBatchFunction number CallVehicleFunction
Camera_FlyAround number FlyAround
Marker3D_ShowByGroupId number Show3DMarkerGroupID
Marker3D_HideByGroupId number Hide3DMarkerGroupID
Marker3D_DeleteByGroupId number Delete3DMarkerGroupID
Camera_EnterWorldAnimation number EnterWorldAnimation
Camera_ExitWorldAnimation number ExitWorldAnimation
TileLayer_SetDecalAttach number SetTileLayerReceiveDecal
Settings_SetGameBoardVisible number SetGameBoardVisible
Antenna_Add number AddRadiationPattern
Antenna_Update number UpdateRadiationPattern
Antenna_Delete number DeleteRadiationPattern
Antenna_Clear number ClearRadiationPattern
Antenna_Get number GetRadiationPattern
Antenna_Focus number FocusRadiationPattern
Antenna_Show number ShowRadiationPattern
Antenna_Hide number HideRadiationPattern
Tools_FunctionNavBar number EnterFunctionNavigationBar
VectorField_Add number AddVectorField
VectorField_Delete number DeleteVectorField
VectorField_Clear number ClearVectorField
WebUIJSON_Get number GetWebUISaveJsonString
WebUIJSON_Set number SetWebUISaveJsonString
VectorField_Update number UpdateVectorField
WebUI_OpenACP number OpenAcp
HydrodynamicModel2_Add number AddHydroModel
HydrodynamicModel2_Update number UpdateHydroModel
HydrodynamicModel2_Delete number DeleteHydroModel
HydrodynamicModel2_Clear number ClearHydroModel
HydrodynamicModel2_Get number GetHydroModel
HydrodynamicModel2_Focus number FocusHydroModel
HydrodynamicModel2_Show number ShowHydroModel
HydrodynamicModel2_Hide number HideHydroModel
FiniteElement_Add number AddCAEModel
FiniteElement_Update number UpdateCAEModel
FiniteElement_Delete number DeleteCAEModel
FiniteElement_Clear number ClearCAEModel
FiniteElement_Get number GetCAEModel
FiniteElement_Focus number FocusCAEModel
FiniteElement_Show number ShowCAEModel
FiniteElement_Hide number HideCAEModel
WebUI_Minimize number MinimizeWindow
WebUI_Maximize number MaximizeWindow
WebUI_Restore number RestoreWindow
Tools_HideFunctionNavBar number ExitFunctionNavigationBar
Fluid_Add number AddFluidFlux
Fluid_Update number UpdateFluidFlux
Fluid_Reset number ResetFluidFlux
Fluid_Delete number DeleteFluidFlux
Fluid_Clear number ClearFluidFlux
Fluid_Get number GetFluidFlux
Fluid_Focus number FocusFluidFlux
Fluid_Show number ShowFluidFlux
Fluid_Hide number HideFluidFlux
Fluid_AddSource number AddFluidFluxSource
Fluid_RemoveSource number RemoveFluidFluxSource
TileLayer_Clear number ClearTileLayer
HeatMap3D_Query number HeatMap3DQueryVoxel
WebUI_EnterFullScreen number EnterFullscreen
WebUI_ExitFullScreen number ExitFullscreen
SignalWave_Add number AddWaveBeam
SignalWave_Update number UpdateWaveBeam
SignalWave_Delete number DeleteWaveBeam
SignalWave_Clear number ClearWaveBeam
SignalWave_Focus number FocusWaveBeam
SignalWave_Show number ShowWaveBeam
SignalWave_Hide number HideWaveBeam
SignalWave_Get number GetWaveBeam
HeatMap3D_SetViewPort number SetHeatMap3DViewPort
WaterFlowField_SetViewPort number SetWaterFlowFieldViewPort
VectorField_SetViewPort number SetVectorFieldViewPort
Settings_SetCharacterRotation number SetCharacterRotation
River_Add number AddHydroSimulation
River_Update number UpdateHydroSimulation
River_Delete number DeleteHydroSimulation
River_Clear number ClearHydroSimulation
River_Get number GetHydroSimulation
River_Focus number FocusHydroSimulation
River_Show number ShowHydroSimulation
River_Hide number HideHydroSimulation
HydrodynamicModel_Add number AddHydroSimulation
HydrodynamicModel_Update number UpdateHydroSimulation
HydrodynamicModel_Delete number DeleteHydroSimulation
HydrodynamicModel_Clear number ClearHydroSimulation
HydrodynamicModel_Get number GetHydroSimulation
HydrodynamicModel_Focus number FocusHydroSimulation
HydrodynamicModel_Show number ShowHydroSimulation
HydrodynamicModel_Hide number HideHydroSimulation
HydroDynamic1D_Add number AddHydroSimulation
HydroDynamic1D_Update number UpdateHydroSimulation
HydroDynamic1D_Delete number DeleteHydroSimulation
HydroDynamic1D_Clear number ClearHydroSimulation
HydroDynamic1D_Get number GetHydroSimulation
HydroDynamic1D_Focus number FocusHydroSimulation
HydroDynamic1D_Show number ShowHydroSimulation
HydroDynamic1D_Hide number HideHydroSimulation
HydroDynamic2D_Add number AddHydroSimulation
HydroDynamic2D_Update number UpdateHydroSimulation
HydroDynamic2D_Delete number DeleteHydroSimulation
HydroDynamic2D_Clear number ClearHydroSimulation
HydroDynamic2D_Get number GetHydroSimulation
HydroDynamic2D_Focus number FocusHydroSimulation
HydroDynamic2D_Show number ShowHydroSimulation
HydroDynamic2D_Hide number HideHydroSimulation
Settings_GetWKT number GetSettingData
SmoothMoveCustomObject number SmoothMoveCustomObject
VectorField_Focus number FocusVectorField
Misc_ReloadPak number RefrenshAssetsViewer
Misc_SetPakVisibility number SetOnlineWebUIVisibility
TileLayer_GetDBTabID number GetTileLayerDBTabID
GeoJSONLayer_Focus number FocusFeatureLayer
Misc_ProjectAssetCount number GetAcpResourceInfo
Marker_SetViewPort number SetMarkerViewVisible
Misc_SwitchShortcutKey number SwitchShortcutKey
Tools_GetFunctionNavBar number GetFunctionNavigationBar
GeoJSONLayer_HighlightFeature number HighlightFeatureLayer
GeoJSONLayer_UnHighlightFeature number UnHighlightFeatureLayer
GeoJSONLayer_FocusFeature number FocusFeatureLayerByFID
GeoJSONLayer_UnHighlightFeaturesByLayerId number UnHighlightFeatureLayerByID
ImageryLayer_Focus number FocusImageLayer
ImageryLayer_AddCustom number AddServerOrService2
VectorField_Show number ShowVectorField
VectorField_Hide number HideVectorField
VectorField_Get number GetVectorField
MarkerLayer_Add number AddPOILayer
MarkerLayer_Update number UpdatePOILayer
MarkerLayer_Delete number DeletePOILayer
MarkerLayer_Clear number ClearPOILayer
MarkerLayer_Focus number FocusPOILayer
MarkerLayer_Show number ShowPOILayer
MarkerLayer_ShowAll number ShowAllPOILayer
MarkerLayer_Hide number HidePOILayer
MarkerLayer_HideAll number HidePOIAllPOILayer
MarkerLayer_Get number GetPOILayer
MarkerLayer_FocusMarker number FocusPOILayer2
Settings_Update number UpdateServerOrService
GeoJSONLayer_Clear number ClearFeatureLayer
GeoJSONLayer_Update number UpdateFeatureLayer
GeoJSONLayer_SetRange number SetFeatureLayerFunction
Marker3D_CallFunction number Call3DMarkerFunction
TileLayer_TileLayerReceiveWMTSDecal number SetTileLayerReceiveWMTSDecal
CustomObject_ShowByGroupId number ShowCustomObjectGroupID
CustomObject_HideByGroupId number HideCustomObjectGroupID
ImageryLayer_SetOpacity number SetServerAlpha
ImageryLayer_MoveImageLayerToAnotherBefore number MoveImageLayerToAnotherBefore
ImageryLayer_MoveImageLayerPrimary number MoveImageLayerLast
ImageryLayer_MoveImageLayerLast number MoveImageLayerPrimary
ImageryLayer_VTPK_Add number AddVTPK
ImageryLayer_VTPK_Visible number SetVTPKVisible
ImageryLayer_VTPK_Delete number RemoveVTPK
InfoTree_GetProjectTreeBPFunction number GetProjectTreeBPFunction
InfoTree_CallProjectTreeBPFunction number CallProjectTreeBPFunction
Camera_ExportImage number ExportImageByCamera
CameraTour_ExportVideo number ExportSimpleCamAnim
CustomObject_Pause number PauseMoveCustomObj
CustomObject_Resume number ResumeMoveCustomObj
CustomObject_SetMoveRate number SetSpeedMoveCustomObj
Vehicle2_Add number CreateVehicle2
Vehicle2_Update number UpdateVehicle2
Vehicle2_Focus number FocusVehicle2
Vehicle2_Show number ShowVehicle2
Vehicle2_Hide number HideVehicle2
Vehicle2_Get number GetVehicle2
Vehicle2_Delete number DeleteVehicle2
Vehicle2_Clear number ClearVehicle2
Vehicle2_MoveTo number AddVehicle2WayPoint
Camera_CancelFollow number CancelFollow
SplineMesh_Add number CreateSplineMesh
SplineMesh_Update number UpdateSplineMesh
SplineMesh_Delete number ClearSplineMesh
SplineMesh_Clear number ClearAllSplineMesh
SplineMesh_Focus number FocusSplineMesh
SplineMesh_Get number GetSplineMeshInfo
SplineMesh_Show number ShowSplineMesh
SplineMesh_Hide number HideSplineMesh
SplineMesh_ShowAll number ShowAllSplineMeshs
SplineMesh_HideAll number HideAllSplineMeshs
SplineMesh_ShowByGroupId number ShowByGroupID
SplineMesh_HideByGroupId number HideByGroupID
SplineMesh_DeleteByGroupId number ClearByGroupID
Marker_SetGatherStyle number CustomPOIGatherStyle
Marker3D_Attach number ObjectAttachment
SettingsPanel_setPak number SetPakAsset
TileLayer_EnableFluid number FluidFluxCollision
Tools_AddAnimation number CreateAnimation

以下导览面板三个接口内置 不对外
Tools_EditAnimation number EditAnimation
Tools_DeleteAnimation number DeleteAnimation
GetProjectInfo number GetProjectInformation
Settings_SetMainPanelPos number SetHomeNavigationPadding
Settings_SetToolbarVisible number SetNavigationBarVisible
Settings_ShowPropertiesPanelById number PopupAttributesPanelById
Settings_HidePropertiesPanel number RemoveAttributesPanel
Settings_SetPropertiesPanelPos number SetAttributesPanelPosition
SplineMesh_CallBPFunction number CallSplineMeshFunction
SplineMesh_GetBPFunction number GetObjectParameters
Settings_EnableRightClickMousePick number RightMouseQueryMessages
TrafficSimulation_Add number CreateTraffic
TrafficSimulation_Update number UpdateTraffic
TrafficSimulation_Delete number DeleteTraffic
TrafficSimulation_Focus number FocusTraffic
TrafficSimulation_SetVisible number SetTrafficVisibility
TrafficSimulation_Highlight number SetTrafficHighlight
TrafficSimulation_TextAdd number CreateTrafficPOI
TrafficSimulation_TextUpdate number UpdateTrafficPOI
TrafficSimulation_TextClear number ClearTrafficPOI
BattlefieldSimulation_Add number CreateBattlefield
BattlefieldSimulation_Update number UpdateBattlefield
BattlefieldSimulation_Delete number DeleteBattlefield
BattlefieldSimulation_Focus number FocusBattlefield
Camera_ExportOrthoImage number ExportOrthographicImage
ImageryLayer2_Add number AddTileOverLayLayer
ImageryLayer2_AddBySchemaParams number AddTileOverLayLayer2
ImageryLayer2_Delete number DeleteTileOverLayLayer
ImageryLayer2_Clear number ClearTileOverLayLayer
ImageryLayer2_Show number ShowTileOverLayLayer
ImageryLayer2_ShowAll number ShowAllTileOverLayLayer
ImageryLayer2_Hide number HideTileOverLayLayer
ImageryLayer2_HideAll number HideAllTileOverLayLayer
ImageryLayer2_SetDrawOrder number MoveOverlay2AnotherBefore
Train_Add number CreateTrain
Train_StartPause number StartTrain
Train_Move number UpdateTrainMileage
Train_Delete number DeleteTrain
Train_Focus number FocusTrain
Train_Get number GetTrainInfo
Train_Show number ShowTrain
Train_Hide number HideTrain
Train_Clear number ClearAllTrain
TileLayer_PointCloud_Renderer number SetTileLayerManager
TileLayer_PointCloud_Highlight number HighlightPointCloudByString
TileLayer_PointCloud_UnHighlight number UnHighlightPointCloudByString
TileLayer_PointCloud_UnAllHighlight number UnAllHighlightPointCloud
CustomObject_ShowGrowth number CustomByTileLayerShowGrowth
GaussianSplatting_Add number CreateGaussianSplatting3D
GaussianSplatting_Update number UpdateGaussianSplatting3D
GaussianSplatting_Focus number FocusGaussianSplatting3D
GaussianSplatting_Show number ShowGaussianSplatting3D
GaussianSplatting_Hide number HideGaussianSplatting3D
GaussianSplatting_Delete number DeleteGaussianSplatting3D
GaussianSplatting_Get number GetGaussianSplatting3D
GaussianSplatting_Clear number ClearGaussianSplatting3D
TopologyLine_Add number CreateTopoline
TopologyLine_Update number UpdateTopoline
TopologyLine_Delete number ClearTopoline
TopologyLine_Clear number ClearAllTopolines
TopologyLine_Focus number FocusTopoline
TopologyLine_Get number GetTopolineInfo
TopologyLine_Show number ShowTopoline
TopologyLine_Hide number HideTopoline
TopologyLine_ShowAll number ShowAllTopolines
TopologyLine_HideAll number HideAllTopolines
ExcavationAnalysis_Add number CreateExcavationAnalysis
ExcavationAnalysis_Update number UpdateExcavationAnalysis
ExcavationAnalysis_Focus number FocusExcavationAnalysis
ExcavationAnalysis_Show number ShowExcavationAnalysis
ExcavationAnalysis_Hide number HideExcavationAnalysis
ExcavationAnalysis_Delete number DeleteExcavationAnalysis
ExcavationAnalysis_Get number GetExcavationAnalysis
ExcavationAnalysis_Clear number ClearExcavationAnalysis
Weather_OceanGet number GetOceanologyParameter
Weather_OceanSet number SetOceanologyParameter
Plot_Add number CreatePlotting
Plot_Update number UpdatePlotting
Plot_Delete number ClearPlotting
Plot_Clear number ClearAllPlottings
Plot_Focus number FocusPlotting
Plot_Get number GetPlottingInfo
Plot_Show number ShowPlotting
Plot_Hide number HidePlotting
Plot_ShowAll number ShowAllPlottings
Plot_HideAll number HideAllPlottings
BoxTrigger_Add number CreateTriggerBox
BoxTrigger_Delete number DeleteTriggerBox
BoxTrigger_Clear number ClearTriggerBox
Settings_GetCharacterPath number GetPlayerMesh
Settings_SetCharacterPath number SetPlayerMesh
Settings_SetMouseMoveAndHoverTime number SetQueryToolStateTime
FiniteElement2_Add number AddVTKVisualization
FiniteElement2_Update number UpdateVTKVisualization
FiniteElement2_Focus number FocusVTKVisualization
FiniteElement2_Get number GetVTKVisualization
FiniteElement2_Delete number DeleteVTKVisualization
FiniteElement2_Clear number ClearVTKVisualization
FiniteElement2_Show number ShowVTKVisualization
FiniteElement2_Hide number HideVTKVisualization
FiniteElement2_AddVTKFilter number AddVTKFilter
FiniteElement2_RemoveVTKFilter number RemoveVTKFilter
FiniteElement2_ClearVTKFilter number ClearVTKFilter
Settings_SetPlayerName number SetServerPlayerName
OceanHeatMap_Add number AddOceanHeatMap
OceanHeatMap_Update number UpdateOceanHeatMap
OceanHeatMap_Delete number DeleteOceanHeatMap
OceanHeatMap_Clear number ClearOceanHeatMap
OceanHeatMap_Get number GetOceanHeatMap
OceanHeatMap_Focus number FocusOceanHeatMap
OceanHeatMap_Show number ShowOceanHeatMap
OceanHeatMap_Hide number HideOceanHeatMap
Drone_Add number CreateDrone
Drone_Update number UpdateDrone
Drone_Delete number DeleteDrone
Drone_Clear number ClearDrone
Drone_Get number GetDrone
Drone_Focus number FocusDrone
Drone_Show number ShowDrone
Drone_Hide number HideDrone
Drone_MoveTo number AddDroneWayPoint
GlobeTerrain_Add number AddGlobeTerainWithImage
GlobeTerrain_SetVisible number SetGlobeTerainVisible
GlobeTerrain_Delete number RemoveGlobeTerainWithImage
GlobeTerrain_Update number SetGlobeTerrainImage
GlobeTerrain_AddOverlay number AddOverlay
GlobeTerrain_DeleteOverlay number RemoveOverlay
GlobeTerrain_ClearOverlay number ClearAllOverLay
GlobeTerrain_SetDrawOrder number MoveCesium3DtileAnotherBefore
GlobeTerrain_UpdateByParams number SetGlobeTerrainImage2
GlobeTerrain_AddOverlayByParams number AddOverlay2
SmoothedParticleHydrodynamics_Add number CreateSPHSimulation
SmoothedParticleHydrodynamics_Update number UpdateSPHSimulation
SmoothedParticleHydrodynamics_Delete number DeleteSPHSimulation
SmoothedParticleHydrodynamics_Clear number ClearSPHSimulation
SmoothedParticleHydrodynamics_Get number GetSPHSimulation
SmoothedParticleHydrodynamics_Focus number FocusSPHSimulation
SmoothedParticleHydrodynamics_Show number ShowSPHSimulation
SmoothedParticleHydrodynamics_Hide number HideSPHSimulation
DaHuaVideoFusion_Add number CreateDHVideoFusionCommand
DaHuaVideoFusion_Update number UpdateDHVideoFusionCommand
DaHuaVideoFusion_Delete number ClearDHVideoFusionCommand
DaHuaVideoFusion_Clear number ClearAllDHVideoFusionCommand
DaHuaVideoFusion_Get number GetDHVideoFusionInfoCommand
DaHuaVideoFusion_Focus number FocusDHVideoFusionCommand
DaHuaVideoFusion_Show number ShowDHVideoFusionCommand
DaHuaVideoFusion_Hide number HideDHVideoFusionCommand
Settings_VTPKService_SetSymbol number SetVTPKServiceSymbol
Vehicle2_SetViewportVisible number SetVehicle2ViewPort
Satellite_Add number CreateSatelliteSystem
Satellite_Update number UpdateSatelliteSystem
Satellite_Clear number ClearSatelliteSystem
Satellite_Focus number FocusSatelliteSystem
Satellite_Get number GetSatelliteSystem
Satellite_Show number ShowSatellite
Satellite_Hide number HideSatellite
Satellite_Delete number DeleteSatellite
Satellite_GetBPFunction number GetSatelliteFunction
Satellite_CallBPFunction number CallSatelliteFunction
Command_End number 10000

<constant> DroneTrailStyle :number

无人机轨迹线样式枚举

Type:
  • number
Properties:
Name Type Default Description
None number 0

无轨迹
Cylinder number 1

圆柱拖尾
Strip number 2

条带拖尾
Dot_Dash_Line number 3

圆点虚线
Square_Dash_Line number 4

方块虚线
Pixel_Line1 number 5

像素线1
Pixel_Line2 number 6

像素线2
Pixel_Line3 number 7

像素线3
Pixel_Line4 number 8

像素线4

fdapi :DigitalTwinAPI

全局变量，SDK内置的DigitalTwinAPI类的实例，当DigitalTwinAPI类实例化（new DigitalTwinAPI）后，
fdapi 就有效了。 一般情况下可以通过 fdapi 类调用API，例如 fdapi.camera.get();

当然，也可以自己定义变量来使用，比如： var api = new DigitalTwinAPI(...); 此后便可以通过
api对象来调用： api.camera.get();

Type:

<constant> FieldType :number

GeoJsonLayer属性字段类型

Type:
  • number
Properties:
Name Type Default Description
String number 0

字符类型
Number number 1

数值类型

<constant> ForwardAxis :number

坐标轴的朝向

Type:
  • number
Properties:
Name Type Default Description
X number 0
Y number 1
Z number 2

<constant> HeatMapStyle :number

热力图样式

Type:
  • number
Properties:
Name Type Default Description
Normal number -1

普通样式
CustomColor number 0

贴地样式
CustomWave number 1

波形样式

<constant> HydroDynamic2DStyle :number

水动力模型的显示样式

Type:
  • number
Properties:
Name Type Default Description
TrueWater number 0

真实水样式
HeatMap number 1

热力图样式
Flow number 2

流场样式

<constant> MapMode :number

地图样式

Type:
  • number
Properties:
Name Type Default Description
Campass number 0

指南针
SmallMap number 1

鹰眼图
BigMap number 2

大地图

<constant> MeasurementMode :number

测量模式

Type:
  • number
Properties:
Name Type Default Description
Coordinate number 1

点测量
Linear number 2

直线测量
Horizontal number 3

水平测量
Vertical number 4

垂直测量
MultiPoint number 5

多点（首尾连接构成多边形的投影面积）
TerrainArea number 6

地表面积
Angle number 7

角度测量

<constant> MousePickMask :number

鼠标拾取状态码，用于设置鼠标拾取功能

Type:
  • number
Properties:
Name Type Default Description
MouseClick number 1

鼠标左键点击
MouseMove number 2

鼠标移动
MouseHover number 4

鼠标悬停

<constant> OceanHeatMapStyle :number

海洋热力图对象样式枚举

Type:
  • number
Properties:
Name Type Default Description
Arrow number 0

箭头
Flow number 1

流场
Wave number 2

波浪

<constant> PanelType :number

系统自带分析面板的类型

Type:
  • number
Properties:
Name Type Default Description
ViewshedAnalysis number 0

可视域分析面板
SkylineAnalysis number 1

天际线分析面板
ViewDomeAnalysis number 2

开敞度分析面板
VisiblityAnalysis number 3

通视分析面板
FloodFillAnalysis number 4

水淹分析面板
SolarAnalysis number 5

日照分析面板
CutFillAnalysis number 6

填挖方分析面板
TerrainSlopeAnalysi number 7

坡度坡向分析面板
ContourLineAnalysis number 8

等高线分析面板

<constant> PlotStyle :number

军事态势标绘类型样式枚举

Type:
  • number
Properties:
Name Type Default Description
Polyline number 0

折线
Circle number 1

圆形
Triangle number 2

三角形
Rectangle number 3

矩形
Polygon number 4

多边形
GatheringPlace number 5

聚集地
BetzCurveArrow number 6

贝兹曲线箭头
PolylineArrow number 7

折线箭头
StraightArrow number 8

直箭头
AssaultDirectionArrow number 9

突击方向箭头
AttackArrow number 10

进攻方向箭头
TailedAttackArrow number 11

进攻方向箭头（尾）
SquadCombatArrow number 12

分队战斗行动箭头
TailedSquadCombatArrow number 13

分队战斗行动箭头（尾）
DoubleArrow number 14

双箭头

<constant> Polygon3DStyle :number

3D Polygon的样式

Type:
  • number
Properties:
Name Type Default Description
Wave number 0

Wave
LoopLine number 1

LoopLine
Gradual number 2

渐变
DynamicGradual number 3

动态渐变
WaveTransparent number 4

波纹
WideWave number 5

宽波纹
RotateArrow number 6

旋转箭头
RotateLine number 7

旋转线
RotateGradual number 8

旋转渐变
SingleColor number 9

单色无光照
SingleColorWithLight number 10

单色有光照
OriginColor number 11

原色
OceanWater number 12

海水（绿）
LakeWater number 13

湖水（蓝）
Opacity number 14

不透明
Mask number 15

遮罩
Transparent number 16

透明
Volume number 17

体积
Volumn number 17

<constant> PolygonStyle :number

Polygon的样式

Type:
  • number
Properties:
Name Type Default Description
SingleColor number 0

单色
CirclePoint number 1

圆点
Volume number 2

体积
Volumn number 2
Gradual number 3

渐变
DynamicGradual number 4

动态渐变
WaveTransparent number 5

波纹
WideWave number 6

宽波纹
RotateArrow number 7

旋转箭头
RotateLine number 8

旋转线
RotateGradual number 9

旋转渐变
OnTerrain number 10

贴地模式
使用注意：
1、ACP工程开启贴地：请先在ACP工程打开设置面板-->后期-->对象贴合：勾选贴合所有；
2、如果ACP工程开启大地图模式并设置了WMTS服务，则当前Polygon的坐标范围必须要在WMTS地图范围内才可以看到贴地效果。
OriginColor number 11

原色

<constant> PolylineStyle :number

Polyline的样式

Type:
  • number
Properties:
Name Type Default Description
Arrow number 0

箭头样式1
Arrow1 number 1

箭头样式2
Flow number 2

流动线
Beam number 3

光流
Normal number 4

正常的固定线条
OnTerrain number 5

贴地模式
使用注意：
1、ACP工程开启贴地：请先在ACP工程打开设置面板-->显示-->对象贴合：选中所有对象或仅贴地形；
2、如果ACP工程开启大地图模式并设置了WMTS服务，则当前Polyline的坐标范围必须要在WMTS地图范围内才可以看到贴地效果。
DottedNormal number 6

普通虚线
DottedCircle number 7

圆点虚线
OriginColor number 8

原色
OnePixelWidth number 9

1像素线

<constant> RendererType :number

GeoJSONLayer的渲染器类型

Type:
  • number
Properties:
Name Type Default Description
SimpleRenderer number 0

简单渲染器
UniqueValueRenderer number 1

唯一值渲染器
ClassBreaksRenderer number 2

分类渲染器
VisibleRenderer number 3

要素可见性渲染器

<constant> ResetType :number

Reset接口的参数，设置重置的类别

Type:
  • number
Properties:
Name Type Default Description
ClearObjects number 1

清除所有通过接口添加的对象
ResetSettings number 2

重置用户设置
ResetCamera number 4

复位相机到初始位置

<constant> SplineMeshStyle :number

路径模型样式枚举

Type:
  • number
Properties:
Name Type Default Description
Fence_1 number 0

围挡1
Fence_2 number 1

围挡2
Wall_1 number 2

墙体1
Wall_2 number 3

墙体2
Road_0 number 4

道路
Road_1 number 5

天然土路_1
Road_2 number 6

天然土路_2
Road_3 number 7

沥青路_L1
Road_4 number 8

沥青路_L2
Road_5 number 9

沥青路_L4
Road_6 number 10

沥青路_L6
Road_7 number 11

沥青路_L8
Road_8 number 12

混凝土路面_1
Road_9 number 13

碎石路_1
Fence_Tree number 14

树篱_1
Pipe number 15

管道_1
Railway_1 number 16

铁路_1
Railway_2 number 17

铁路_2
Railway_4 number 18

铁路_4
Railway_5 number 19

铁路_5
RectangularPipe number 20

矩形管道

<constant> UIPanelType :number

系统UI操作面板的类型

Type:
  • number
Properties:
Name Type Default Description
MainUI number 0

主页
NewACP number 1

新建acp
OpenACP number 2

打开acp
MergeACP number 3

合并acp
SaveACP number 4

保存acp
Load3DT number 5

导入3dt
Load3DTService number 6

加载3dt服务
LoadSHP number 7

导入shp
Load3DTiles number 8

导入3DTiles
Exit number 9

退出
InfoTreeGet number 10

图层树查询
ResourceGet number 11

资源库查询
PreferenceSettings number 12

偏好设置
Around number 13

交互模式：漫游
CenterAround number 14

交互模式：中心漫游
Robomb number 15

交互模式：无人机
Role number 16

交互模式：人物
Map number 17

交互模式：地图
Vehicle number 18

交互模式：汽车驾驶 注意：仅特定版本生效
Edit number 19

交互模式：编辑
CameraTour number 20

导览动画
Report number 21

汇报模式
Weather number 22

环境
PostProcess number 23

后期
Camera number 24

相机
ShowSettings number 25

显示
Measure number 26

测量
Flatten number 27

压平
Hole number 28

挖洞
Clip number 29

剖切
Select number 30

点选
Screenshot number 31

截屏
Material number 32

材质
Vegetation number 33

植被
Vehicle number 34

交通工具
DynamicWater number 35

水
VideoProjection number 36

视频投影
Panorama number 37

全景图
Light number 38

灯光
Marker number 39

标签
Marker3D number 40

动态标记
Decal number 41

贴画
Beam number 42

光流
RadiationPoint number 43

辐射圈
Polyline number 44

折线
Polygon number 45

多边形
Settings number 46

设置
Help number 47

帮助
ViewshedAnalysis number 48

可视域分析
SkylineAnalysis number 49

天际线分析
ViewDomeAnalysis number 50

开敞度分析
VisiblityAnalysis number 51

通视分析
FloodFillAnalysis number 52

水淹分析
SolarAnalysis number 53

日照分析
CutFillAnalysis number 54

填挖方分析
TerrainSlopeAnalysi number 55

坡度坡向分析
ContourLineAnalysis number 56

等高线分析
Plot number 57

态势标绘
SplineMesh number 58

路径模型

<constant> VectorFieldStyle :String

向量场样式

Type:
  • String
Properties:
Name Type Default Description
Typhoon String DTS_TPHOON

台风
Waves String DTS_WAVE

波浪
Ocean String DTS_OCEAN

洋流
Fluid String DTS_STYLE_FLUID

流体 默认
Fluid_UV String DTS_FLUID_COUNT_XYZ_UV

流体 带UV流速流向
River String DTS_RIVER

河流 带UVW流速流向
Wave String DTS_WATER_WAVE

河流 波浪
Band String DTS_SURFACE_WIND

纯色条带
WindSmog String DTS_WIND1

烟雾
WindArrow String DTS_WIND2

箭头
WindPoint String DTS_WIND_POINT

风场散点无尾迹

<constant> VehicleViewMode :number

载具视角模式枚举

Type:
  • number
Properties:
Name Type Default Description
FirstPerson number 0

第一人称（驾驶员）视角
ThirdPerson number 1

第三人称视角

<constant> VERSION :string

JS-API版本

Type:
  • string

<constant> Viewport :number

视口掩码

Type:
  • number
Properties:
Name Type Default Description
V1 number 1

视口1
V2 number 2

视口2
V3 number 4

视口3
V4 number 8

视口4
All number 255

所有视口

<constant> VisualType :number

GeoJsonLayer符号化类型

Type:
  • number
Properties:
Name Type Default Description
Color number 0

控制颜色
Size number 1

控制点尺寸
Height number 1

控制Polygon3D高度
Opacity number 1

控制透明度

<constant> WaterFlowFieldStyle :number

WaterFlowField的样式

Type:
  • number
Properties:
Name Type Default Description
HeatMap number 0

热力图样式
Water number 1

水流样式
Particle number 2

光流粒子样式

<constant> WaterMode :number

水动力模型的真实水样式的显示类型

Type:
  • number
Properties:
Name Type Default Description
Animation number 0

水动画模式
Simulation number 1

水仿真模式
Arrow number 2

水流向模式

<constant> WSErrorCode

WebSocket 错误码：

0 ～ 999 禁止 1000 以下的代码是无效的，不能用于任何目的
1000 ～ 2999 保留 这些代码保留以用于扩展和 WebSocket 协议的修订版本。按照标准规定使用这些代码，参见表 3-4
3000 ～ 3999 需要注册 这些代码用于“程序库、框架和应用程序”。这些代码应该在 IANA（互联网编号分配机构）公开注册
4000 ～ 4999 私有 在应用程序中将这些代码用于自定义用途。因为它们没有注册，所以不要期望它们能被其他 WebSocket广泛理解

1000 CLOSE_NORMAL 正常关闭，当你的会话成功完成时发送这个代码
1001 CLOSE_GOING_AWAY 离开， 因应用程序离开且不期望后续的连接尝试而关闭连接时，发送这一代码。服务器可能关闭，或者客户端应用程序可能关闭
1002 CLOSE_PROTOCOL_ERROR 协议错误，当因协议错误而关闭连接时发送这一代码
1003 CLOSE_UNSUPPORTED 不可接受的数据类型， 当应用程序接收到一条无法处理的意外类型消息时发送这一代码
1004 - 保留，不要发送这一代码。根据 RFC 6455，这个状态码保留，可能在未来定义
1005 CLOSE_NO_STATUS 保留，不要发送这一代码。WebSocket API 用这个代码表示没有接收到任何代码
1006 CLOSE_ABNORMAL 保留，不要发送这一代码。WebSocket API 用这个代码表示连接异常关闭
1007 UNSPPORTED_DATA 无效数据， 在接收一个格式与消息类型不匹配的消息之后发送这一代码。如果文本消息包含错误格式的 UTF-8 数据，连接应该用这个代码关闭
1008 POLICY_VIOLATION 消息违反政策， 当应用程序由于其他代码所不包含的原因终止连接，或者不希望泄露消息无法处理的原因时，发送这一代码
1009 CLOSE_TOO_LARGE 消息过大，当接收的消息太大，应用程序无法处理时发送这一代码（记住，帧的载荷长度最多为64 字节。即使你有一个大服务器，有些消息
1010 MISSING_EXTENSION 需要扩展，当应用程序需要一个或者多个服务器无法协商的特殊扩展时，从客户端（浏览器）发送这一代码
1011 Internal Error 意外情况，当应用程序由于不可预见的原因，无法继续处理连接时，发送这一代码
1012 Service Restart 服务器由于重启而断开连接
1013 Try Again Later 服务器由于临时原因断开连接，如服务器过载因此断开一部分客户端连接
1014 - 保留
1015 TLS Handshake TLS失败（保留），不要发送这个代码。WebSocket API 用这个代码表示 TLS 在 WebSocket 握手之前失败。
1016-1999 由WebSocket拓展保留以便未来使用
2000-2999 由WebSocket拓展保留使用
3000-3999 可以由库和框架使用，不应由应用使用，可以在IANA注册，先到先得
4000-4999 可以由应用使用

2023.06.13 优化统一错误码
之前no_free_instance的代码定义为1013，当发送这个错误码时，在iOS平台上，收到的确实1005，
所以将此错误码重新定义为4010.

Methods

buildURL(url, params) → {string}

工具函数：拼接URL和查询参数

Parameters:
Name Type Description
url string

基础URL
params Record.<string, any>

查询参数对象
Returns:

拼接后的完整URL

Type
string

get(url [, options]) → {Promise.<any>}

GET请求封装（简化调用）

Parameters:
Name Type Argument Default Description
url string

请求地址
options Object <optional>
 {}

配置项（继承request的params/timeout/responseType等）
Returns:

响应数据

Type
Promise.<any>

post(url [, data] [, options]) → {Promise.<any>}

POST请求封装（简化调用）

Parameters:
Name Type Argument Default Description
url string

请求地址
data any <optional>
 null

请求体数据
options Object <optional>
 {}

配置项（继承request的params/timeout/responseType等）
Returns:

响应数据

Type
Promise.<any>

request(config) → {Promise.<any>}

通用请求核心方法（参考标准库设计）

Parameters:
Name Type Description
config Object

请求配置

Properties
Name Type Argument Default Description
url string

请求地址
method string <optional>
 'GET'

请求方法
params Record.<string, any> <optional>
 {}

URL查询参数
data any <optional>
 null

请求体数据
headers Record.<string, string> <optional>
 {}

请求头
timeout number <optional>
 10000

超时时间（ms）
responseType string <optional>
 'json'

响应解析类型（json/text/blob/arrayBuffer/formData）
Returns:

解析后的响应数据

Type
Promise.<any>

SM3()

国密SM3加密{JS实现}

参考 https://blog.csdn.net/Shen_yuanjia/article/details/111879819

Returns:

sm3Digest(msg)

SM3加密主函数

Parameters:
Name Type Description
msg
Returns:
